How to efficiently fill a vacuum tank: A step-by-step guide

Reading time 3 minutes (684 words)

When it comes to the workings of vacuum trucks, breaking down the complexity is key. These powerful machines are essential for environmental cleaning operations, industrial work, and waste management. However, a key aspect often overlooked is how efficiently these trucks fill their vacuum tanks. Let’s dive into simple terms to understand the factors that influence the filling process.

1. Decoding “Hose End Flow” (HEF)

Think of “Hose End Flow” (HEF) as the heartbeat of a vacuum truck’s operation. It’s the vacuum system’s actual air flow – carrying debris or liquid – sucked into the tank, distinguishing it from what the pump theoretically could do on its best day. Measuring HEF gives us a realistic look at a vacuum truck’s everyday capabilities. Several puzzle pieces fit together to define the HEF:

• How the pump itself performs under certain vacuum pressures
• The diameter of the suction hose – the bigger, the more it can carry
• The length of the hose – longer hoses may decrease efficiency
• The lifting height – pulling material upwards can be challenging

Armed with HEF data and knowing the tank’s size, you can guesstimate how long it’ll take to fill it. For instance, with HEF at 200 cubic meters per hour and a 10 cubic meter tank, it takes roughly 3 minutes to complete the job. Keep in mind that in practice, filling-times can vary according to material types and other unseen variables.

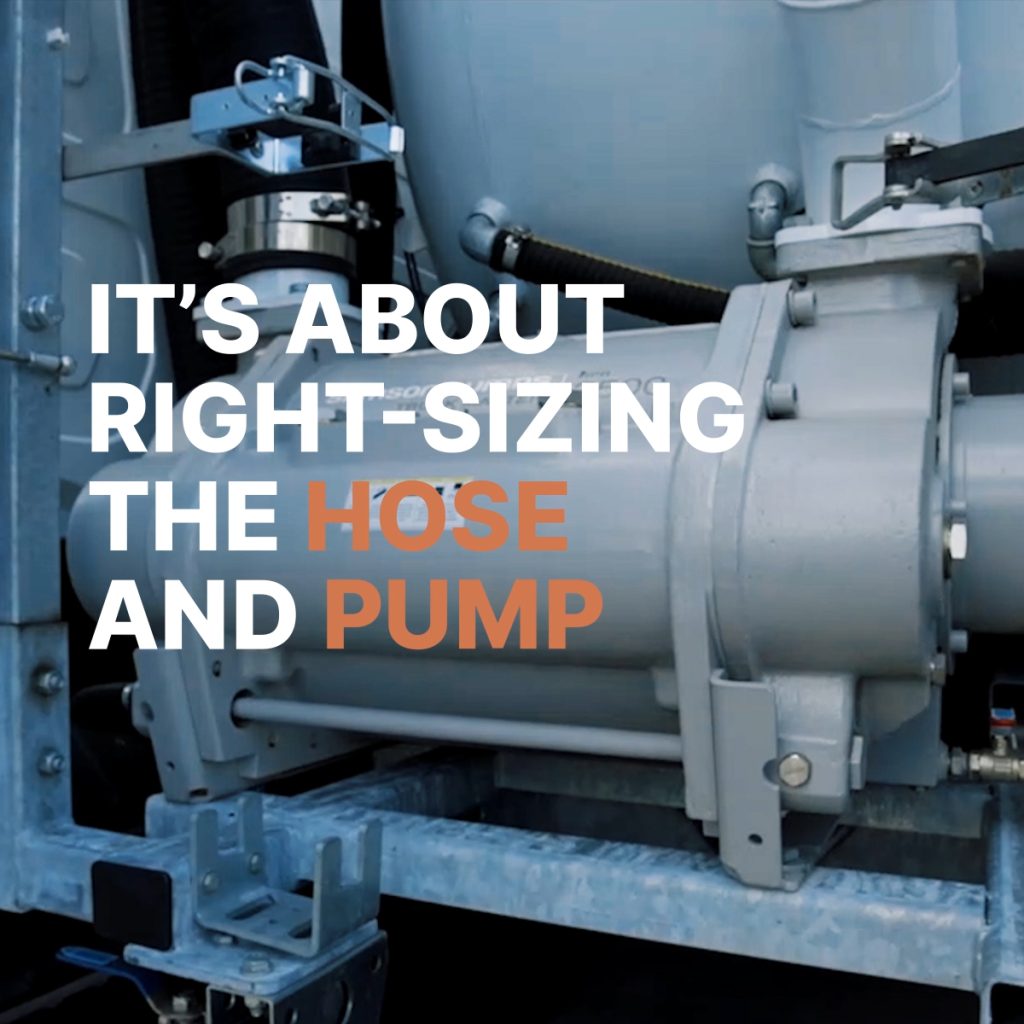

2. Selecting the right-sized pump

Bigger isn’t always better. You might think that a gigantic pump will get the job done quicker, but that’s not always true. Using a pump too large for your vacuum truck is like using a sledgehammer when you need a scalpel: costly and inefficient.

This is where our expertise comes to the rescue. We champion “right-sizing” the vacuum pump – choosing the one that exactly meets the demands of your task. We offer a handy Solution Finder to help you select the best pump size, according to hose diameter, material travel distance, and preferred performance levels.

3. Keeping the air moving at optimal speeds

To keep things flowing smoothly in a vacuum truck, maintaining the right air speed inside the suction hose is crucial. Different materials need different air speeds to move nicely:

• Powders (like flour) prefer a gentle 10 meters per second.
• Liquids (like water) need a brisk 25 meters per second.
• Solids (like small rocks) require a robust 35 meters per second or more.

Hitting these air speeds guarantees materials won’t get stuck and the filling process runs smoothly.

4. Avoiding obstacles in airflow

Imagine running a race where hurdles keep popping up; that’s what happens when there are obstructions in a suction hose. Bends, restrictions, and poorly designed air flow paths to the pump can knock the wind out of the system’s sails, causing what experts call ‘pressure drops.’ These drops interfere with the vacuum’s strength, slowing down the filling rate.

The solution? Engineer an intake path that’s as straightforward as a beeline – minimal twists and with every effort to reduce blockages to a minimum. This keeps the air (and your material) marching smartly into the tank.

Conclusion

Vacuum tank filling is not about intuition; it’s a science. By grasping the importance of HEF, choosing a “right-sized” pump, maintaining proper air speeds, and optimizing the airflow path, you, too, can reach the pinnacle of vacuum truck efficiency. Understanding these elements helps ensure a brisk and smooth tank filling experience, turning a complex operation into a master class in vacuum tank filling.

What is Solution Finder?

In this blog post we talk about Solution Finder. It is a clever tool that uses simulations to make vacuum systems better and more efficient. Think of it like a video game that helps engineers test and improve their designs before they build them. By playing with different settings and options in the software, designers can see what works best and make great systems that are fine-tuned for top performance. Learn how this approach is changing the game for vacuum system design, making it easier and smarter! Try the tool as a guest and sign-up to have full access.
